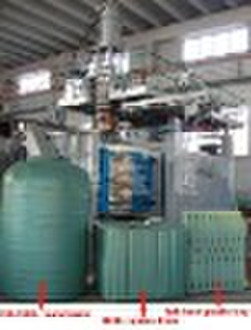

2000L Blow Molding Machine YK150

2000L Blow Molding Machine YK150 1.The machine controlled by advanced siemens PLC system,easy for operation,automatic trouble alarming,working in reliable with hing degree in automation 2.Hydraulic components are from YUKEN Japan, pheumatic part is from SMCfrom Japan, 3.With lifting platform and lifting die head 4.Alloy steel die head with plating 5.Automatic center lubrication system 6.Inverter controls the extruder 7.Can be equipped with single die head,two die heads,four die heads,two tiers head,two tiers with transparent line die head as well as servo-type thickwall controlled die head,can meet various requirements for producuts SPECIFICATIONS UNITSYK120D SERIERSMax container capacity L2000LNumber of die heads Set1Machine dimension (L*W*H) M6.8×5.0×4.5Total weight Ton23 CLAMPING UNIT Clamping force KN640Platen opening stroke mm2500Platen size mm1350*1850Max mould size (W*H) mm1200*1600Mould thickness mm800-1500 POWER Max drive KW90Total power KW130Fan power for screw KW0.14*3Air pressure Mpa0.7Air consumption M3/min0.9Average energy consumption KW96 EXTRDER UNIT Screw diameter mm150Screw L/D ratio L/D25Plasticizing capacity Kg/hour200Number of heating zone Zone3Extruder heating power KW37Extruder driving power KW90 DIE HEAD Number of heating zone Zone3Power of die heating KW17Max die pin diameter mm800 GUARANTEE The guarantee time is one year after the machines normally works in the Buyer’s factory, if only the problem is cause due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you how to solve the problems. Any problem caused due to irregular operation or incorrect maintenance by the Buyer won’t be listed in guarantee coverage.
